手動型影像測量儀 SVM 3020 II

發布時間：2018/7/28

產品介紹：

SVM系列光學影像測量機是利用光學放大成像，將顯微鏡下觀測到的物體影像數字化，結合控制軟件進物體的幾何尺寸測量以及繪圖，并可將數據表格化以及進行后期處理。適用于機械、電子、電器、模具以及精密五金的檢測和設計開發。

功能：

基本幾何元素測量、組合元素測量、幾何元素構造、形位公差評定、逆向工程等，各種報表的輸出。

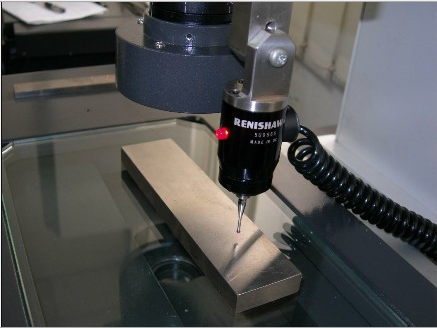

設備特點：

ˉ 采用全花崗石底座、支柱，保證機械系統的穩定性

ˉ 表面環形光和輪廓光均采用連續可調的LED冷光源，避免造成被測物體的熱變形，使用壽命長

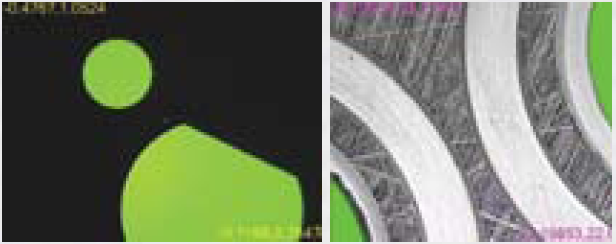

輪廓光表面環形光

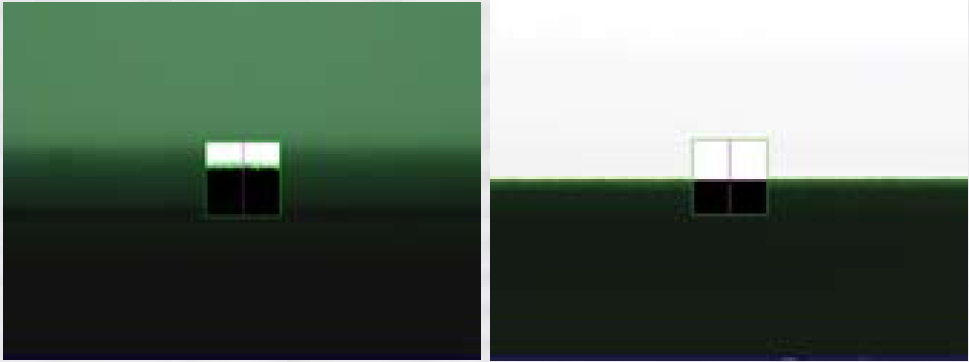

ˉ 平行輪廓光，邊界更清晰，保證測量精度

非平行輪廓光平行輪廓光

ˉ 人性化設計的激光指示器，方便快速查找被測特征的位置

功能強大操作簡易

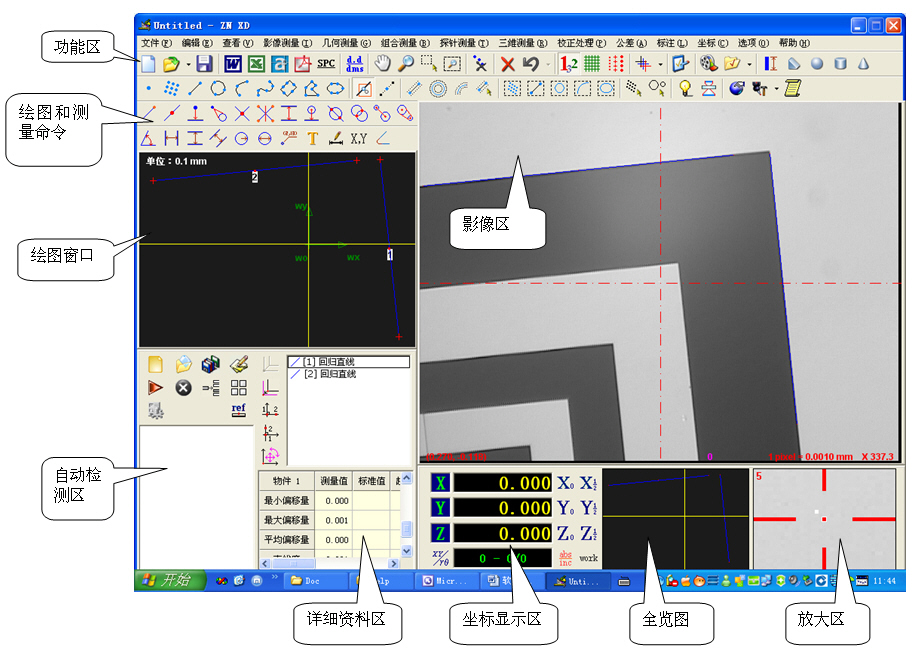

VMS3.1 影像測量軟件有超強及完善的2.5D幾何量測功能適用于解決批量工件或復雜尺寸之檢測效率，強調快速、精準、品質保證。提供影像截取、比對、校正、補償、自動尋邊、自動取點、自動對焦、智能學習等功能。

u 完整的幾何測量（如：點、線、圓、弧、角度等）。

u 坐標系的設定、擺正、旋轉。

u 逆向工程功能以及與CAD的同步操作使用和與CAM的連接。

u 測量精準度的校正和補償。

u 針對重復工件的測量有記憶、學習、自動編程的功能，快速準確的現場實時測量。

u 顯示方式多樣化：語言的切換（中文簡體和繁體、英文等），公英制單位的切換（mm/inch）角度的轉換

u （度/分/秒）、顯示數字的小數點可設置。

u 多種線的色彩可設置。

u 標準隨意化：可依據不同的語言、色彩、格式在圖形的任何位置進行標注。

u 個性化編輯：有復制、粘貼、刪除、剪切、延伸、UNDO/REDO等功能。

u 鼠標直接點擊操作，智能型簡便易學易用。

u 對一般幾何測量圓、點、線、面、橢圓、不規則曲線它可以自動抓取量測資料，精確度穩定

u 測量工件可任意擺放，軟件具有強大的坐標平移、旋轉或重新設置

u 可以在影像上對所測元素直接進行尺寸標定，給客戶以清晰、直觀的感覺

u 無論規則與不規則形狀工件只需鼠標框選，圖形自動尋邊找點，進行二維圖形抄數

u 實現DXF格式的輸入和輸出

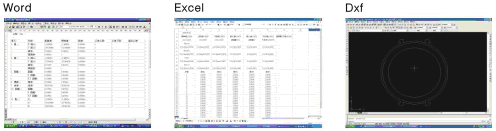

u 直觀、豐富的報表輸出 , WORD 、EXCEL格式

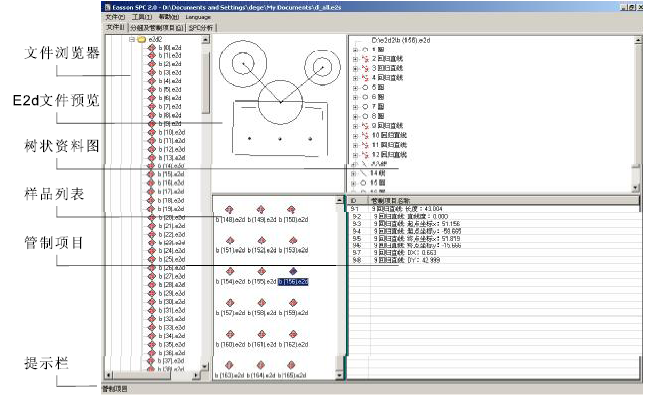

u 實用的SPC模塊

VMS 3.1 Software function (applicable to SVMII manual vision measuring machines) Powerful and simple With powerful 2.5D geometric measurement functions for batch or complex size measurement, VMS 3.1 Vision measuring software focuses on fastness, accuracy, and quality assurance, providing image intersection, comparison, calibration, compensation, automatic edge finding, automatic point collection, automatic zooming and intellectual learning functions.

u Comprehensive geometric measurement (such as: point, line, circle, arc, angle, etc.)

u Coordinate establishment, alignment and rotation,

u Reverse engineering, synchronous operation of CAD and interface with CAM.

u Accuracy calibration and compensation.

u Memory, learning and automatic programming or repeated measurement; fast, accurate real time on site measurement.

u Versatile display mode: language (simplified &traditional Chinese and English etc.),metric-inch conversion(mm/inch) and angle conversion(degree/minute/second),Number of decimal displays, etc.

u Color of various lines can be customized.

u Random markings: can remark at anywhere in the graph according to different language, color and format. Personalized sditing: copy, paste, delete, cut, extend and UNDO/REDO etc.

u Chick and use, intelligent, easy-to-learn and master.

u For general geometric measurement (such as circle/point /line/plane/oval and irregular curve),automatically acquire measurement date, stable accuracy.

u Measured workpiece can be randomly placed since the software has powerful parallel movement, rotation and resetting functions.

u Can direct mark measurement elements dimensions on the image, clear and direct for users.

u For regular or irregular shaped work piece, area selection by mouse click will launch automatic edge detection and 2D graphic scanning.

u CAD file import and export into IGS/DXF/and STEP.

u Direct and versatile reports output in WORD or EXCEL.

u Pragmatic SPC module.

靈活豐富的測量功能Flexible and comprehensive measuring functions

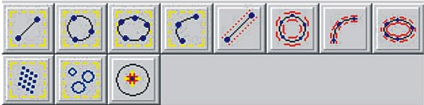

u 畫點、點群、畫線、畫圓、畫弧、B-Spline、曲線、矩形、多邊形、橢圓

u 自動捕捉邊緣點、自動點測量

u 自動線測量、自動圓測量、自動圓弧測量、自動線識別

u 框選點群、框選直線、框選圓、框選圓弧、框選橢圓

u 點選點群、點選圓

u Draw points, points group, lines, circles, arcs, B-Spines, curves, rectangular, polygon and ovals.

u Automatic edge points detection and measurement.

u Automatic line, circle and arc measurement and automatic identification of line.

u Area selection of points group, lines, circles, arcs and ovals.

u Point click points group and circles.

實用的構造功能Pragmatic Construction Function

u 兩點連線、線中點、點線距、點圓切線、兩線交點、角平分線、線線距離、圓線距、

u 圓線交點、圓圓交點、圓圓距離、圓圓切線

u Line between two points, points in lines, distance point-line, tangent lines between points and circles, intersection of two points, angular bisector, distance line-line, distance line-circle, intersections of lines and circles, intersections of circles, distance circle-circle, tangent lines between circles.

基本的幾何圖元測量Measurement of basic geometric graphic elements
