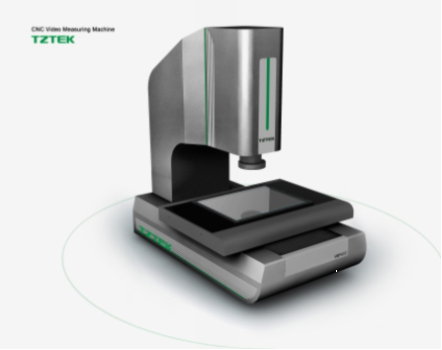

全自動影像測量儀 VME322
VME是面向基礎級測量應用而研發的經濟型全自動影像測量儀，采用業內獨創電子卡位鏡頭，靈活性的人工變倍，最優化的軟硬件配置，完美實現各種測量需求，廣泛應用于模具、精密五金、手機面板、玻璃、觸摸屏等行業。
VME is a series of economical measuring machines which is suitable for primary measuring technology.
It has the Electronic positioning lens, manual zoom lens with high flexiblility and the most superior configuration of hardware and software. VME can meet all the measuring requirements perfectly and is widely applied to mold, metal, mobile phone panel, mirror, touching panel industries.
2 基本參數 Basic Parameter
|
天準影像測量儀 TZTEK Video Measuring Machine |
|
|||||
|
型號 Model |
行程 Range |
外部尺寸External Size |
重量 Weight |
承重 Capacity |
||
|
VME322 |
300×200×200 |
1040×740×1620 |
250 |
25 |
||
|
測量精度 Accuracy |
XY軸* |
Z軸** |
||||
|
（2.6+L/200）μm |
（5.0+L/200）μm |
|||||
|
*L表示測量長度，以毫米為單位 *L, the measured length in mm. **Z軸的機械精度，聚焦的精度與工件表面有很大關系 **Mechanical accuracy of Z. Accuracy of focus is surface dependent. |
||||||
|
速度 Speed |
XY軸 |
Z軸 |
||||
|
500mm/s |
100mm/s |
|||||
|
工作環境 Operating Environment |
溫度Temperature：20℃±2℃ 溫度變化Temperature Variation：<2℃/hr 濕度Humidity：30～80% |
|||||
|
振動Vibration：＜0.002mm/s，＜15Hz |
||||||
|
電源Power：220VAC，50Hz，10Amp |
||||||
2 配置清單 Configuration List
|
名稱 Name |
分項名稱 Description |
規格及主要技術參數 Technical Specifications |
|
|
1 |
機械本體 Mechanics |
主機 Machine |
影像測量系統, 三軸CNC控制 3-axis CNC video measuring machine |
|
2 |
機械結構 Structure |
三軸花崗巖主體結構，物理性能穩定 3-axis granite machines, high stability |
|
|
3 |
光柵尺 Scale |
1.0μm分辨率光柵尺 1.0μm scales |
|
|
4 |
導軌 Guide |
三軸精密滑軌 3-axis precision guide |
|
|
5 |
電機 Motor |
直流伺服電機 DC servomotor |
|
|
6 |
光學系統 Optical System |
攝像機 Camera |
進口工業彩色相機 Imported industrial color camera |
|
7 |
鏡頭 Lens |
TZTEK電子卡位鏡頭 TZTEK Electronic positioning lens |
|
|
8 |
放大倍率 Magnification |
光學放大倍率：0.7～4.5X Optical Magnification:0.7~4.5X 影像放大倍率：28～184X Image magnification: 28~184X |
|
|
9 |
表面光 Surface |
6環8區LED冷光源，256級亮度可調 6 rings 8 octants, LED lighting, 256 luminance adjustable |
|
|
10 |
輪廓光 Profile |
LED冷光源，256級亮度可調 LED lighting,256 luminance adjustable |
|
|
11 |
軟件系統 Software System |
Vispec 測量軟件 Vispec Software |
VME版 |
|
12 |
電控系統 Control system |
天準®電控系統 TZTEK Control system |
VME版 |
|
13 |
附件 Accessories |
操作電腦 Computer |
戴爾電腦 DELL computer |
|
14 |
工作臺 Worktable |
天準特制工作臺 TZTEK specialized worktable |
|
|
15 |
出廠合格證 Qualified Certificate |
Qualified by TZTEK |
|
|
16 |
軟件光盤 Software CD |
軟件光盤一張 Software CD |
|
|
17 |
Warranty Manual |
|
2 儀器特點 Features
? 三軸CNC控制系統，全自動測量。
Three -axis CNC control , automatic measurement.
? 三軸精密線性滑軌、精密傳動系統。
Three-axis precision linear guide.
? 精密花崗巖機臺，精度高、穩定性好。
Precision granite structure, high accuracy and stability.
? 全鼠標的自動化控制，簡單易用。
Easily operated with mouse.
? 可程控6環8區環形表面光源，LED輪廓光源。
Programmable surface light (6 rings 8 octants), LED profile light.
? 自動對焦測高，可加裝接觸式測頭。
Automatic focus for height measurement. Touch probe can also be added on demand.
? 支持選配可程控升降和調整角度的表面光系統，分外3環和內3環獨立控制，提高原68光源的打光性能。并且支持?jǐn)U展外置光源。
Support optional surface light system, which can move up & down and adjust light angle with the programmable control; outer 3 rings and inner 3 rings can operate separately, improving the light performance from the previous 6 rings 8 octants; external light is also be supported.
2 軟件系統 Software System
基本測量功能 Basic Measuring Function
可測幾何量：點、線、圓（最大、最小和平均）、弧、樣條曲線、橢圓、矩形、四邊形、槽、R角、環、間距、距離、點群等。
It can test the geometric element, including point, line, circle, arc, spline, ellipse, rectangle, slot, ring circle ,gap, distance, point list, etc.
構建：中心點、極值點、端點、交點、兩點連線、平行線、垂線、切線、平分線、中心線、合并、輪廓分割、半徑畫圓、三線內切圓、兩線半徑內切圓等。
It can construct centered, endpoint, insect, connect, parallel, perpendicular, tangent, bisect, combine, etc.
影像量測工具：繪圖點、最近邊緣點、聚焦點、圓形框取點、最佳邊緣點、最近點、整體提取、多段提取、紋理分割、多段紋理分割、電子卡尺、快速整理取圓、開放輪廓線、最大閉合輪廓線、最近閉合輪廓線。
Video measuring tools include drawing point, closed point, focus point, pick point by circle, whole pick, multiple pick, edge trace, largest closed contour, nearest closed contour.
形位公差：直線度、圓度、位置度、平行度、垂直度、傾斜度、同心度等。
It can provide tolerance measurement: include straightness, roundness, position, parallelism, perpendicularity, angularity and concentricity, etc.
坐標系：夾具定位坐標系、點線、兩點X、兩點Y、三點、兩線、圖像配準坐標系；平移、旋轉、手工調整坐標系。
Coordinate system: Fixture positioning coordinate system, dotted line, Two points determine the X axis, Two points determine the Y axis, three points, two lines, Image registration system. Translation, rotation, manually adjust the coordinate system.
特色功能
變倍同步顯示：切換倍率時，軟件自動同步更新9個倍率的顯示。
Synchronous display ratio change：When switch the rate, the software update 9 rate display automatic.
編程與自動化操作 Programming and Automation
可生成任務進行全自動批量測量，并支持自動和手工交互操作。
It can create a task for automatic measurement, and support both automatic and manual interactive operation.
手動鏡頭變倍，變倍后無需重新校正。
Manual lens for programmable zoom measurement, without re-correct.
光源實現自動控制，支持自動打光。
Light can be controlled by software and support automatic lighting.
支持表面光六環八區、輪廓光的各區段自動控制。
Surface light and profile light can be controlled.
可快速自動聚焦，聚焦測量高度。
It can focus automatically and quickly to measure height
輸出及數據統計 Output and Data Statistics
可輸出Word、Excel、HTML、TXT報表和AutoCAD文件。
Word, Excel, TXT and AutoCAD formats of output.
支持實時輸出至excel模版，可定制模版。
Real-time output to excel templates , customizable templates.
可以只輸出最后一次任務運行的數據。
You can only output results of the last run of the task.
運行任務時自動生成.rst格式文件，記錄任務運行的詳細信息。
Automatically generated .rst when you run the task, details of the task run record.
運行完打?。喝蝿?wù)運行完直接打印。
Print after running：Print directly after finish running.
輸出任務數據到文件：輸出任務運行結果至文本中，同名任務的數據輸出至同文件。
Task data output to the file: Output the result of task data to the text, the task data of the same name output to the same file.
可按指定目錄，根據任務名稱自動輸出任務結果至csv文本中，便于同種工件結果的統一分析。Can specify a directory, the name of the task automatically output the results to a csv text tasks , facilitate unified analysis of the results of the same kinds of artifacts.
SPC統計功能，導入rst文件，可進行有效的品管控制。
SPC statistical function, Import the .rst file, can control the quality of product effectively.
基元屬性區域，實時顯示當前正在測量的基元數據。
Primitive property area , real-time display primitive data being measured currently.
基元超差區，分類顯示正?；?，超差基元，未測量基元等等。
Primitive error area, classified according to normal primitives, out-of-tolerance primitive, not measured primitives, and so on.
其他增強型功能 Other Enhanced Function
SPC：對測量數據管制分析。
SPC: Control and analysis the measurement data.
全景掃描：任意選擇區域進行影像的掃描拼圖。
Panoramic scanning: Choose any area of the scanning and puzzle image.
溫度補償：根據環境溫度與標準溫度差值，計算膨脹系數，使得結果更精確。
Temperature Compensate: According to the environment temperature and the standard temperature difference value, calculate the coefficient of expansion, makes the result more accurate.
十字線提取模式：多種顯示模式，十字，井字，圓形，網格，方便快速比對。
Reticle extraction mode: A variety of display mode, Cross, tic-tac-toe, rounded, grid, convenient and quick.
導入CAD圖紙：可導入DXF圖紙，GERBER圖紙，與CAD互相導入導出，完成圖形處理。
Import the CAD paper: DXF, GERBER. With the CAD import and export with each other, Complete the graphics.
大圖導航：能觀察當前及周邊位置，快速定位。
Electronic navigation: Can observe the current position and surrounding, rapid positioning.
